Blade Sidelight LED Module

Description

Evolve Blade LED Sidelit Sign Module

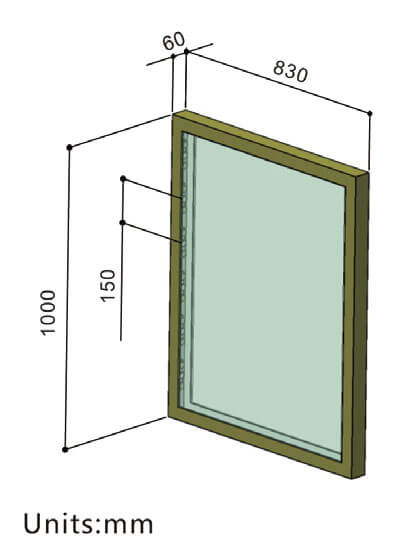

The Blade is a slim fit side light module with state of the art elliptical lenses and 3 LEDs per module making it suitable for narrow light boxes and cabinets. The Blade LED modules can be spaced up to 150mm apart of a cabinet depth of 60mm, requiring fewer modules. Internal constant current IC allows connection of up to 20 modules in series.

Specifications

Evolve Blade LED Module Features:

Suitable for 50 - 120mm depth
13° x 25° asymmetric optical lens
3 Step MacAdam colour binning
Constant current onboard technology
20 modules in series

Frequently Asked Questions

What are LED modules used for?

Our LED modules are ideal for sign and channel letter illumination, backlighting, display cases and commercial lighting applications where compact, bright light sources are needed.

How are the modules mounted and wired?

Modules mount quickly with self-adhesive backing or screws and wire together in a chain back to a low-voltage power supply, making large installations straightforward.

Are they suitable for outdoor signage?

Many of our modules carry weather-resistant ratings for outdoor sign work - check the specification sheet, or contact us and we will confirm the right choice.

What power supply do they need?

Modules run on low-voltage constant-voltage power. We can help you select and size the correct driver for the number of modules in your sign or project.

Do you deliver the Blade Sidelight LED Module New Zealand-wide?

Yes. Specialized Lighting Concepts dispatches the Blade Sidelight LED Module nationwide from our Auckland warehouse. Freight is calculated at checkout, and you are welcome to contact us for a quote on larger or trade orders.

Need help with your layout?

Contact our expert sales team or use the LED System Designer on the website for more detailed layouts.

Contact our sales team LED System Designer Coming soon

Downloads

PDFBLADE sign module specPDF, PDFSIGN ILLUMINATION SYSTEMSPDF,
