High-Density COB LED Strip – Seamless Continuous Light

Description

This high-output COB LED strip is engineered for demanding architectural lighting applications where maximum brightness and perfectly uniform light are required. With a 30 mm wide PCB and advanced Chip-On-Board (COB) technology, it delivers a powerful, seamless line of light with no visible LED dotting.

Producing up to 4300 lumens per metre, this strip is designed for large-scale installations such as coves, ceiling features, light boxes, and architectural recesses where high light levels and visual consistency are critical.
Due to its width and output, installation within a suitable aluminium profile for heat management is strongly recommended.

Operating on 24V DC, the strip offers stable performance and long run lengths, making it ideal for commercial, hospitality, and feature architectural environments.

Key Features

Ultra high-output COB LED technology
Up to 4300 lm/m continuous, dot-free illumination
30 mm wide PCB for enhanced thermal performance
Seamless line of light with excellent visual uniformity
24V DC operation for stable, efficient power delivery
Designed for architectural profiles and large-scale installations

Typical Applications

Cove and ceiling feature lighting
Architectural recesses and bulkheads
Light boxes and luminous ceilings
Feature walls and large linear installations
Commercial and hospitality interior spaces

Technical Summary

LED Type: COB (Chip-On-Board)

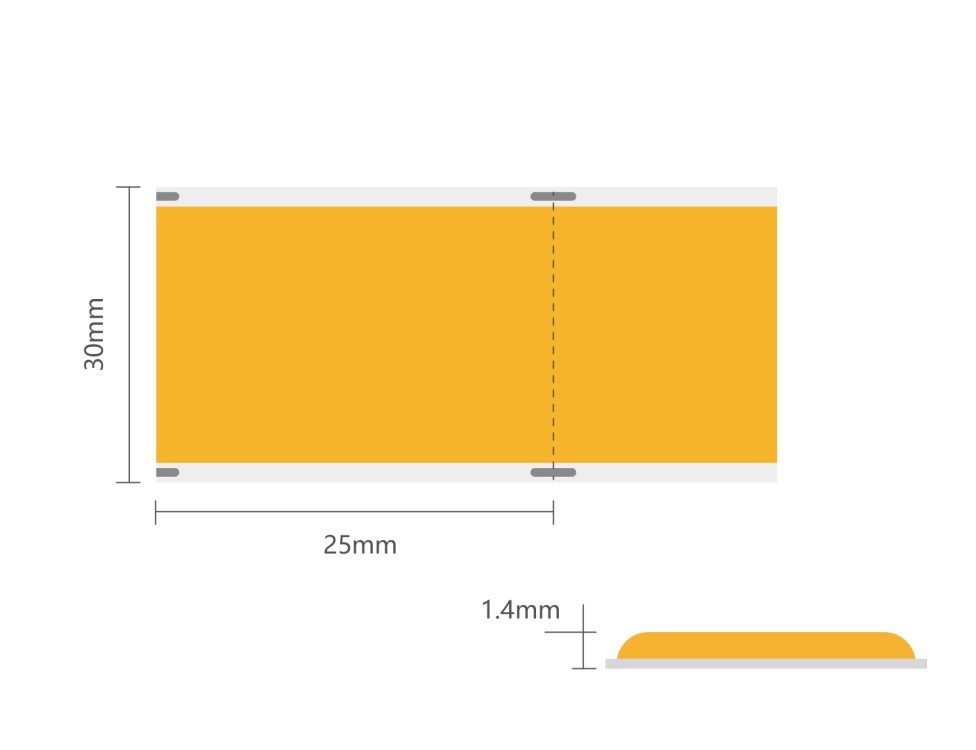

PCB Width: 30 mm
1600 LEDs per meter
Luminous Output: Up to 4300 lm per metre
Input Voltage: 24V DC
Light Effect: Continuous, dot-free line of light
Installation: Aluminium profile required
Use Environment: Indoor architectural applications

(Detailed specifications available on request)

Specifications

Technical Specifications

LED Type	COB (Chip-On-Board)
LED Density	1600 LEDs per metre
PCB Width	30 mm
Input Voltage	24V DC
Luminous Output	Up to 4300 lm/m
Light Effect	Continuous, dot-free
Installation	Aluminium profile required
Environment	Indoor use

Frequently Asked Questions

How do I install the LED strip?

Our strips feature a strong adhesive backing for easy installation. Clean the surface thoroughly, peel off the backing and press the strip firmly into place. Solderless connectors are available for quick, tool-free joins.

Can the strip be cut to length?

Yes, the strip can be cut at its designated cut points. End caps or connectors can then finish the cut end for a clean, professional look.

Is the strip dimmable?

Yes, when paired with a compatible dimmable driver and dimmer or controller. We recommend quality dimmers for the smoothest dimming, and we can match one to your strip.

What power supply do I need?

LED strips run on low-voltage 12V or 24V constant-voltage power. Choose a driver with enough wattage for your total strip length - we can calculate the right size for you.

Which IP rating should I choose?

Indoor dry areas suit standard strips, while bathrooms, kitchens and outdoor areas need water-resistant or waterproof options. Contact us and we will recommend the right rating for your environment.

Do you deliver the High-Density COB LED Strip – Seamless Continuous Light New Zealand-wide?

Yes. Specialized Lighting Concepts dispatches the High-Density COB LED Strip – Seamless Continuous Light nationwide from our Auckland warehouse. Freight is calculated at checkout, and you are welcome to contact us for a quote on larger or trade orders.

Need help with your layout?

Contact our expert sales team or use the LED System Designer on the website for more detailed layouts.

Contact our sales team LED System Designer Coming soon

Downloads

PDFUltra High output Cob Led Strip – Datasheet and Load CalculationsPDF,
