QUAD WIDE ANGLE 6W MODULE

Description

Evolve Quad LED Backlit Sign Module

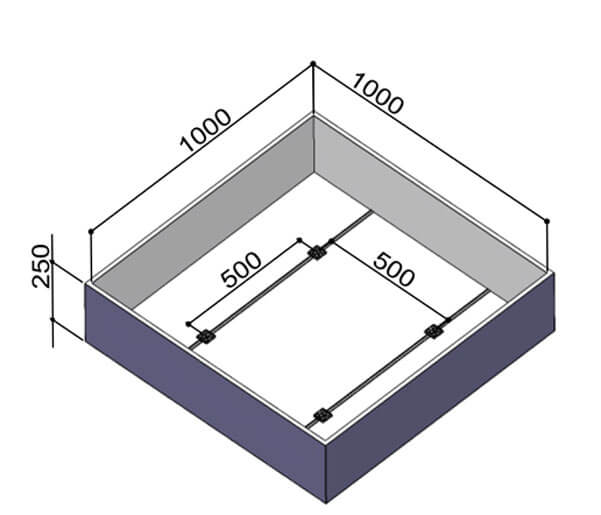

The Evolve Quad module provides bright illumination for deep light boxes and cabinets from 75mm - 250mm deep. Packing an impressive 900 lumens of light from only 6.0 watts of power combined with the Quads Bat Wing Optical Lens allows sign manufacturers to use a minimum number of modules with Depth to spacing ratio of 1:3 . Internal constant current IC allows up to 10 modules to be run in series.

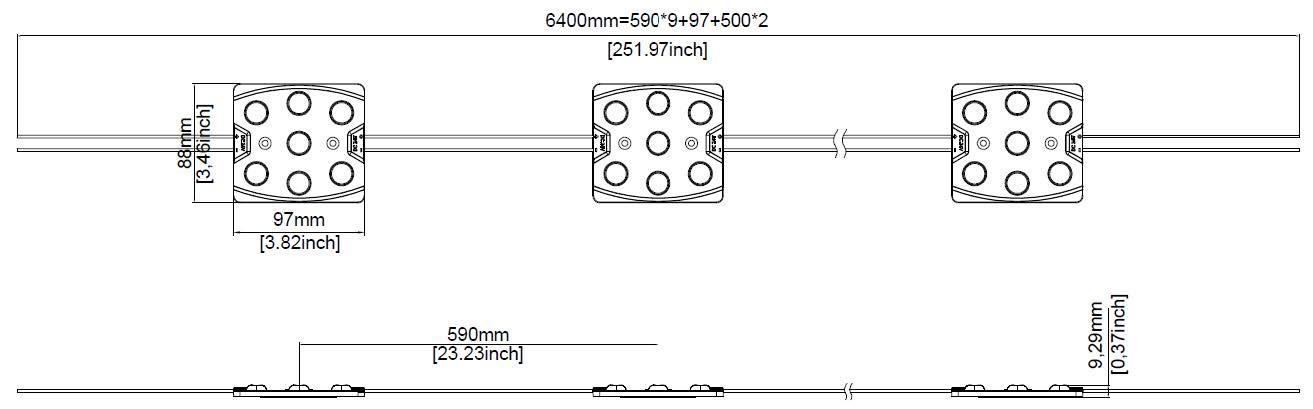

Specifications

Evolve Quad LED Module Features:

Signage and illuminated advertising.
Back-lighting for medium and large light box, channel letter.
Best for 75mm ~ 250mm (3~10inch) depth.
Uniformity optical performance at high LED module distance thanks to excellent lens design.
6 W/module.
3 years warranty.
900 lm/module (6500K).
IP66
Dimmable

Frequently Asked Questions

What are LED modules used for?

Our LED modules are ideal for sign and channel letter illumination, backlighting, display cases and commercial lighting applications where compact, bright light sources are needed.

How are the modules mounted and wired?

Modules mount quickly with self-adhesive backing or screws and wire together in a chain back to a low-voltage power supply, making large installations straightforward.

Are they suitable for outdoor signage?

Many of our modules carry weather-resistant ratings for outdoor sign work - check the specification sheet, or contact us and we will confirm the right choice.

What power supply do they need?

Modules run on low-voltage constant-voltage power. We can help you select and size the correct driver for the number of modules in your sign or project.

Do you deliver the QUAD WIDE ANGLE 6W MODULE New Zealand-wide?

Yes. Specialized Lighting Concepts dispatches the QUAD WIDE ANGLE 6W MODULE nationwide from our Auckland warehouse. Freight is calculated at checkout, and you are welcome to contact us for a quote on larger or trade orders.

Need help with your layout?

Contact our expert sales team or use the LED System Designer on the website for more detailed layouts.

Contact our sales team LED System Designer Coming soon

Downloads

PDFM27GW20B datasheet (3)PDF,
