Photon Retro Surface LED Pool Light

Description

Replacement LED Pool Light - Surface Mounted

The Photon Series is a surface mounted LED swimming pool light that will replace most models of existing pool light. It is available in single colour Blue or White, or Tri-Colour Blue/Green/White or Multi model with 8 colours and 2 colour change patterns. They are simple to install requiring no special tools or experience.

Features:

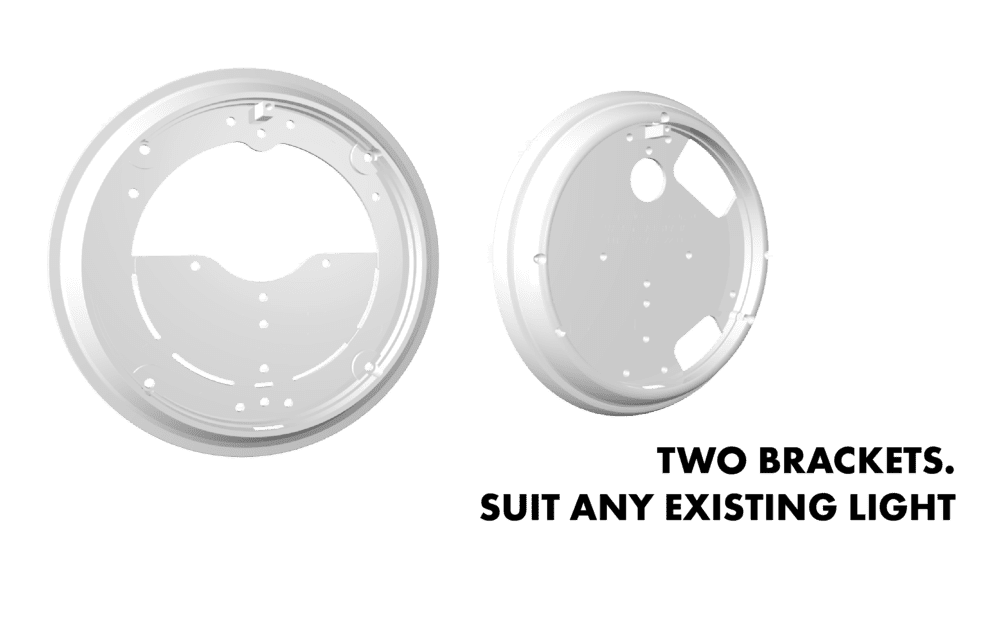

Suitable for the direct replacement of all major lighting brands in Concrete, Fibreglass and Vinyl pools

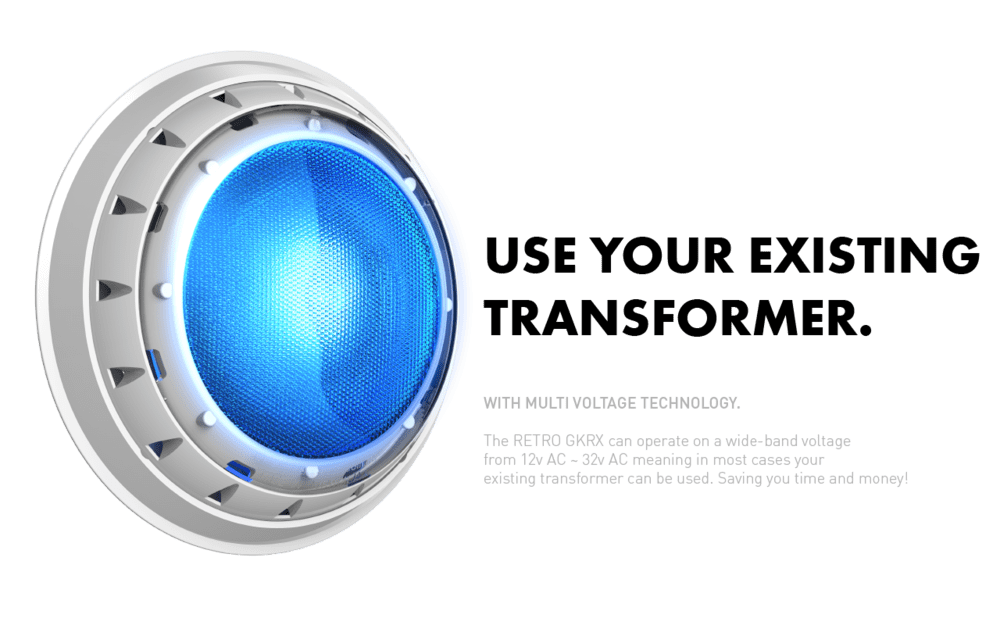

Variable Voltage Operation on 12, 24 & 32v ac
External Heat sink allows for superior LED cooling
Kind to the environment, operating on approximately 88% less energy than a normal 100watt halogen light

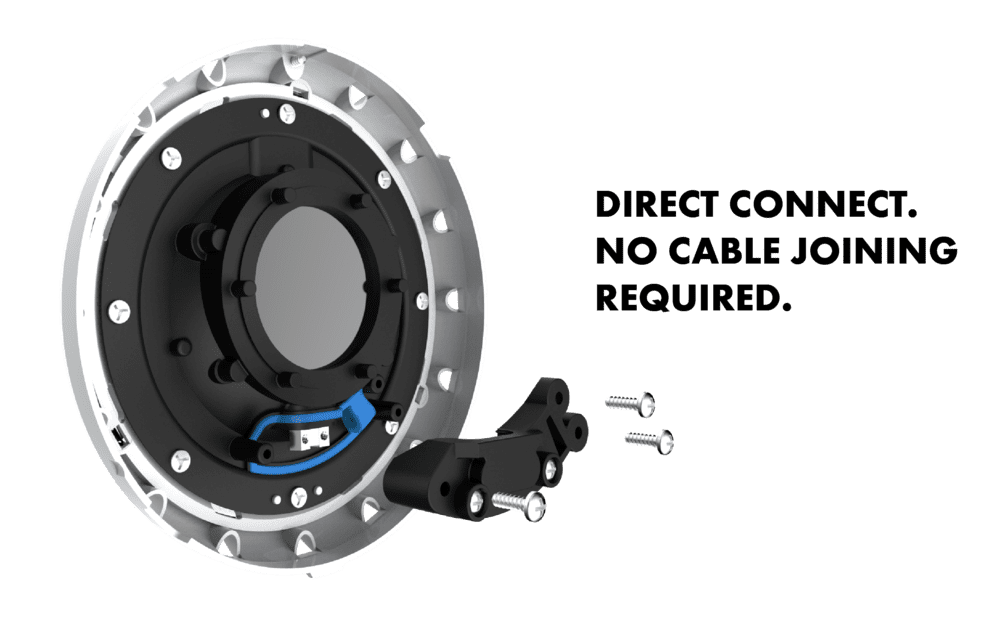

Direct Connect electrical connection eliminates any possible source of water entry
Slotted rim allows water circulation behind the light eliminating stagnant water and aiding in cooling
Choice of rim colours including: White, Black
Ceramic Light Engine is available in Blue, Green, White or Multi Colour
Simple installation and one screw mounting for ease of service
IPX8 waterproof rating
Designed and manufactured in Australia
Patented design

Replaces:

Poolrite
Astral
Stroud
Filtrite
Waterco & more

Specifications

TECHNICAL SPECIFICATIONS

Light Source	Ceramic Light Engine (LED)
Available Colours	MULTI PLUS
	TRI Colour
	Blue (465nm)
	White (4000K)
MULTI PLUS Compatibility	Wall Switch Operation
	iRIS Lighting Controller
	AstralPool Connect 10®
	Pentair IntelliTouch® / EasyTouch®
	Zodiac/Jandy RS (REV R - Current)
	Zodiac TRi®
IP Rating	IPX8
Installation Types	Concrete / Fibreglass / vinyl
Voltage	12~32v AC
Wattage	12watts
Ambient Operating Temperature	5 °C to +40 °C
Warranty	12 Month Manufacturers Warranty

Frequently Asked Questions

Is this pool light suitable for new pools and retrofits?

Yes. The range includes models designed for new pool construction and retrofit options that replace existing fittings. Our team can confirm the right version for your pool type - concrete, fibreglass or vinyl - before you order.

Are your pool lights safe for permanent underwater use?

Yes, our pool lights are purpose-built for permanent submersion with sealed, waterproof construction. For safety and warranty reasons we recommend installation by your pool builder or a licensed electrician.

Can I change colours and sync multiple pool lights?

Yes. Colour-changing models can be controlled through compatible controllers, and multiple lights can be synced so your whole pool displays the same colour and effect at once.

What else do I need for installation?

Pool lights run on safe low voltage, so you will need a compatible transformer or driver. Contact us with your pool setup and we will recommend the right power supply and accessories.

Do you deliver the Photon Retro Surface LED Pool Light New Zealand-wide?

Yes. Specialized Lighting Concepts dispatches the Photon Retro Surface LED Pool Light nationwide from our Auckland warehouse. Freight is calculated at checkout, and you are welcome to contact us for a quote on larger or trade orders.

Need help with your layout?

Contact our expert sales team or use the LED System Designer on the website for more detailed layouts.

Contact our sales team LED System Designer Coming soon

Downloads

PDFPhoton retro pool light installationPDF,
